Top 10 125 Hp Well Pump

High Capacity Pumping

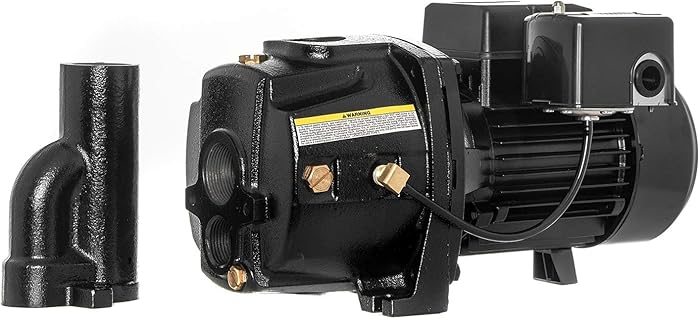

The RainBro CCW100 1 horsepower cast iron convertible deep well pump is designed for wells up to 80 feet deep. It can be used as shallow well jet pump where depth of the well is 25 ft. (shallow well max depth 25 ft.) and deep well jet pump where depth of well is 26-80 ft. (deep well max depth 80 ft.). At 40 psi it pumps up to 910 US gph@ 5 ft.. This heavy-duty well pump is designed with a 115/230-volt motor, factory set for 230V with the quick change voltage selection switch, and the pressure switch is set to 30 psi on for high-pressure delivery, produces up to 50 psi with automatic shut-off.

Wide Application

Jet Pumps are mounted above ground and lift the water out of the ground through a suction pipe. RainBro well pumps are used for supplying fresh water to large homes, farms, and cabins.

Limited Warranty

1 year limited warranty

What’s in the Box

1HP convertible well pump

Ejector kit

User Manual

WARNING

Do not run the pump before priming it, Remove the priming port and pour clean water into the unit until casing and suction line are completely filled.

This jet Pumps are NOT submersible and are usually placed inside a protected area outside a well.

1HP, 230V/60HZ/1PH, 7 stage, 33 GPM Max, 207 feet head, Mid Intake, S.S. SHELL C.I Intake, 1-1/4” NPT discharge.
Warning: This is 220V pump!

Specifications:
* 4″ deep well submersible pump. 1 HP, 230V, 5.1 Amps, 7 stage, 1-1/4” NPT discharge Industrial grade heavy duty, also good for home usage
* Fits a 5″ or larger well casing. For 4″ casing, use pump MA0460X-9A, or MA0459X-14A;
* Patented impeller provides high flow up to 33GPM, and 207 ft. Head. That is greater than almost all other 1 HP well pumps.
* Water temperature: (32 ~113of) Trans medium’s Ph.: 6.5~ 8.5
* Shell, motor shaft are made with stainless steel to ensure corrosion resistance.
* High quality sealed ball bearings guarantee its excellent performance.
* High efficient and hermetically sealed motor has a built in capacitor start, and thermal protection to prevent overheating, for longer life and powerful start.
* Built in control box. This pump DOES NOT require an external control box!
* This pump uses high quality UL approved motor, UL file No.: E233961
* This is a 2 wire pump (2 wires + ground wire) 10′ long electric cord included.
* Heavy-duty thermoplastic impellers, diffusers, and intake screen.
* Built in check valve included.
* Submersible design creates quiet operation
* Unique design reduces its noise.
* 207 feet max head is for open water tanks. Refer to the ‘Pump Selection Guide’ for the pressure tank applications.
* User’s manual included and installation tape kit included.
* Warranty: 12 months limited manufacturer’s warranty

Product Description

Superior Pump builds pumps that are truly Built to Last with quality components and are 100 percent factory tested. The 94705 3/4 HP shallow well jet pump features a rugged cast iron pump body for durability. Designed for shallow well applications this pump will work with wells up to 25 ft. in depth. This pump features a pre-mounted, fully adjustable pressure switch preset at 20/40 psi. A dual voltage motor, with built-in thermal overload protection, can be set for 115-Volt or 230-Volt. Tough thermoplastic impeller and glass filled thermoplastic diffuser are designed to move up to 11.8 gallons per minute at 40psi. The pump is built using a cast iron seal plate and offers 1-1/4 inch NPT suction/1 inch NPT discharge.

From the Manufacturer

Superior Pump is a family owned and operated Pump Company specializing in residential / light commercial duty pumps. Headquartered in Minneapolis, Minnesota, Superior Pump was founded in 1999 after spending years in the pump industry dating back to the 70’s, and with a plumbing background starting in St Paul Minnesota dating all the way back to 1885. Superior Pump adheres to our strong core family values, selling the absolute highest quality product possible. Known for building durable pumps, Superior Pump concentrates on quality throughout the engineering, manufacturing and testing processes. Quality products, strong warranties, excellent USA based customer service – Superior Pumps Built to Last!

1HP, 115V/60HZ/1PH, 7 stage, 33 GPM Max, 207 feet head, Mid Intake, S.S. SHELL C.I Intake, 1-1/4” NPT discharge.
Warning: This is 110V pump! Using 220V will burn the pump!
Specifications:
* 4″ deep well submersible pump. 1 HP, 115V, 10.3 Amps, 7 stage, 1-1/4” NPT discharge Industrial grade heavy duty, also good for home usage
* Fits a 5″ or larger well casing. For 4″ casing, use pump MA0460X-9, or MA0459X-14;
* Patented impeller provides high flow up to 33GPM, and 207 ft. Head. That is greater than almost all other 1 HP well pumps.
* Water temperature: (32 ~113of) Trans medium’s Ph.: 6.5~ 8.5
* Shell, motor shaft are made with stainless steel to ensure corrosion resistance.
* High quality sealed ball bearings guarantee its excellent performance.
* High efficient and hermetically sealed motor has a built in capacitor start, and thermal protection to prevent overheating, for longer life and powerful start.
* Built in control box. This pump DOES NOT require an external control box!
* This pump uses high quality UL approved motor, UL file No.: E233961
* This is a 2 wire pump (2 wires + ground wire) 10′ long electric cord included.
* Heavy-duty thermoplastic impellers, diffusers, and intake screen.
* Built in check valve included.
* Submersible design creates quiet operation
* Unique design reduces its noise.
* 207 feet max head is for open water tanks. Refer to the ‘Pump Selection Guide’ for the pressure tank applications.
* User’s manual included and installation tape kit included.
* Warranty: 12 months limited manufacturer’s warranty

4″ deep well submersible pump. 2 HP, 230V, 10.2 Amps, 12 stage, 1-1/4” NPT discharge Industrial grade heavy duty, also good for home usage
* Fits a 5″ or larger well casing.
* Patented impeller & 12 stage design. 35GPM max & 400ft head are greater than almost all other 2HP well pumps, and comparable to 3HP pumps, but uses less electricity.
* Unique floating impeller design, premium seal, and UL qualified motor provide long life for this pump.
* Water temperature: (32 ~113of) Trans medium’s Ph.: 6.5~ 8.5
* Shell, motor shaft are made with stainless steel to ensure corrosion resistance.
* High quality sealed ball bearings guarantee its excellent performance.
* Built in check valve included. Installing external check valve(s) is required.
* Hermetically sealed motor with capacitor start, and thermal protection to prevent overheating, for longer life and powerful start.
* Built in control box. This pump DOES NOT require an external control box!
* This pump uses high quality and high efficient UL approved motor, UL file No.: E233961, for less energy and long pump life.
* This is a 2 wire pump with 3-Wire (2 wires + ground wire) 10′ long electric cord included.
* Heavy-duty thermoplastic impellers, diffusers, and intake screen.
* Unique design reduces its noise. User’s manual and installation tape kit included.
* 400 feet max head is for open water tanks. Refer to the ‘Pump Selection Guide’ for the pressure tank applications.
* Warranty: 12 months manufacturer’s warranty

Acquaer SJC050 is a 1/2 hp shallow well jet pump is designed for wells up to 25 ft. Deep. The pump can run at 115 or 230 Volts with the quick change voltage selection switch, and the pressure switch is set to 30 psi on and 50 psi off for high-pressure delivery.

Product Description

Ideal for the Supply of fresh water to rural homes, farms, and cabins that have 4 inch and greater diameter drilled wells to depths of 250′.

From the Manufacturer

This submersible deep well pump is ideal for 4-Inch I.D. or larger wells. It features a built in check valve, 12-GPM and built in suction screen.

Clean water is important to you, and it’s important to WAYNE. The 1/2 HP CSW50 is proudly assembled in the USA and can safely pump up to 408 Gallons of fresh water per hour at 50 PSI. Engineered for reliable long-lasting use in wells up to 90 feet – warrantied for 3 years.
