The Best Frigidaire Ffmv162lsa Handle

Microwave door handles are often damaged because when they are opened suddenly, they can hit cabinets or other appliances made of materials stronger than the plastic the handles are usually made of. While it seems like replacing a microwave door handle should be a simple matter of removing a couple of screws, it’s a little more complicated. You need to take off and disassemble the microwave door to remove the old handle and install a new one.

How to Replace a Microwave Door Handle
Step 1: Unplug your microwave oven, or if it’s a built-in model, turn off the circuit breaker or remove the appropriate fuse from your home fuse box.
Step 2: Open your microwave door. Take the top pin off the pivot bracket, and pick the door up, removing it from the bottom bracket. Lay the microwave door front side down on a folded towel. Remove the two choke screws from the door frame with a Phillips head screwdriver.
Step 3: Use a thin knife blade to remove the choke cover, starting at the top right corner of the microwave door. Only pry out the top right and bottom sides at this point. Leave the side that houses the handle in place until later.
Step 4: Use the knife’s edge to remove the choke tabs from the slots on the microwave door frame. Work your way clockwise around the door, and when you get to the side with the handle, remove the choke cover, and separate it from the choke. Remove the two handle screws with a Phillips head screwdriver. Gently pull the handle off the microwave.
Step 5: Screw the new handle on. Lay the choke on the microwave door, and set the choke cover on top of it. Use your knife blade to insert the choke tabs into the slots on the microwave door frame. Secure the two choke screws with a Phillips head screwdriver. Set the microwave door back on the bottom bracket, and slide the top pin into the pivot bracket. Press down on the top pin until you feel it pop securely into place.

Product Description

This is a genuine replacement part. The model number and name for the following item is: Frigidaire 5304477398 Handle Assembly.

From the Manufacturer

This is a genuine replacement part. The model number and name for the following item is: Frigidaire 5304477398 Handle Assembly

Part Numbers: 5304477398, AP4561001, 1614682, 5304464066, 5304464133, 5304472481, AH2583001, EA2583001, PS2583001

Replacement Handle for Frigidaire Microwave

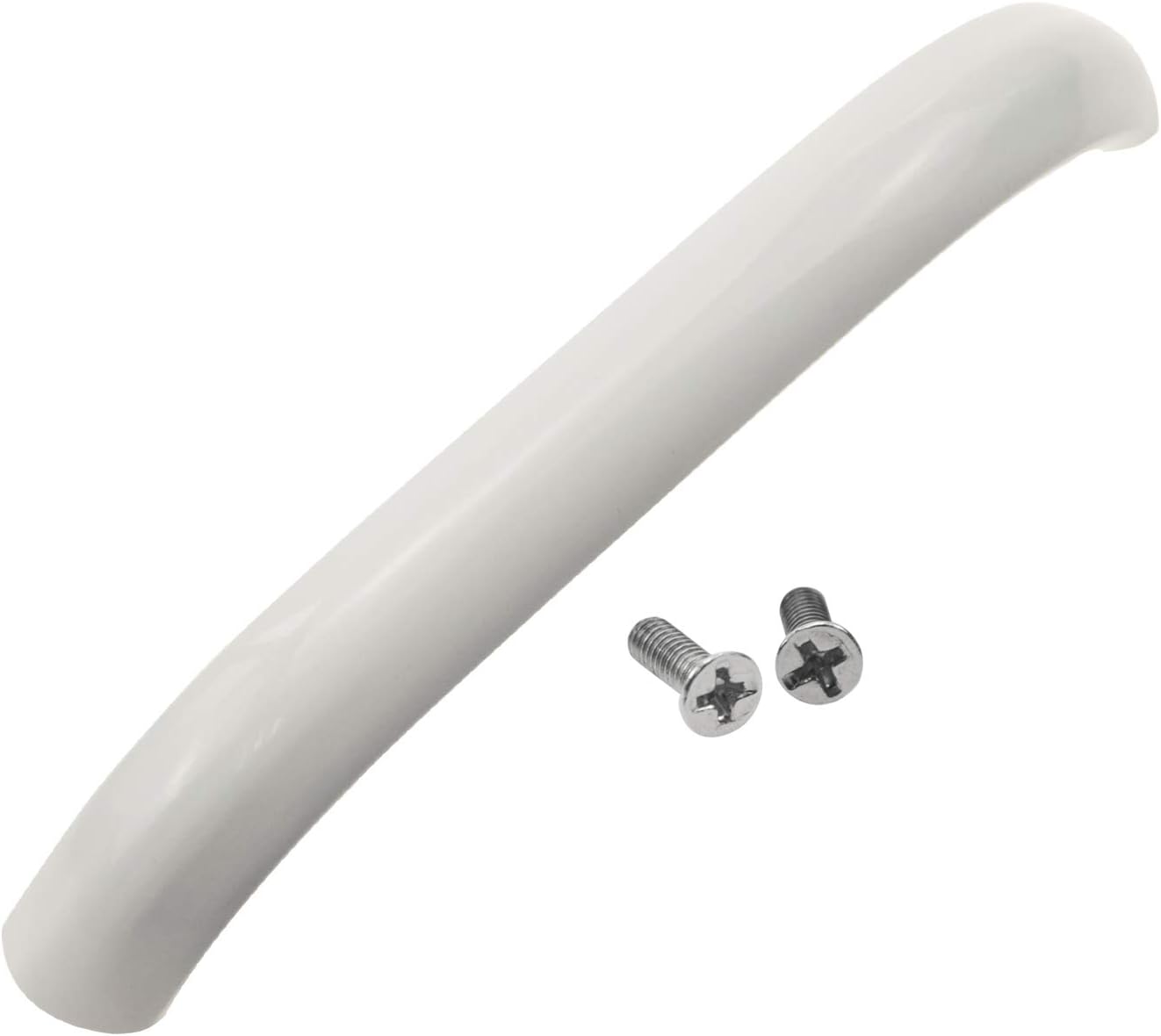

Color: White

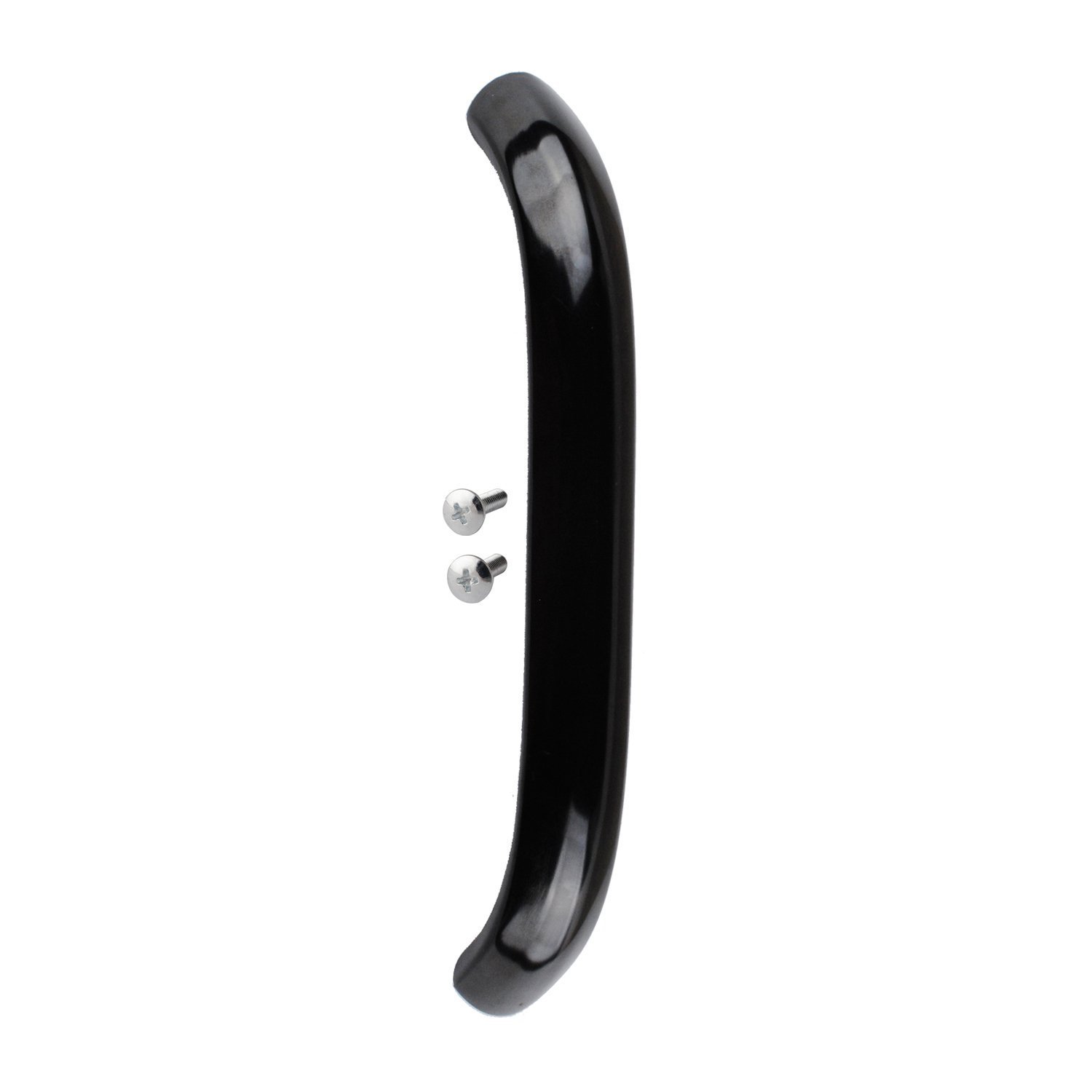

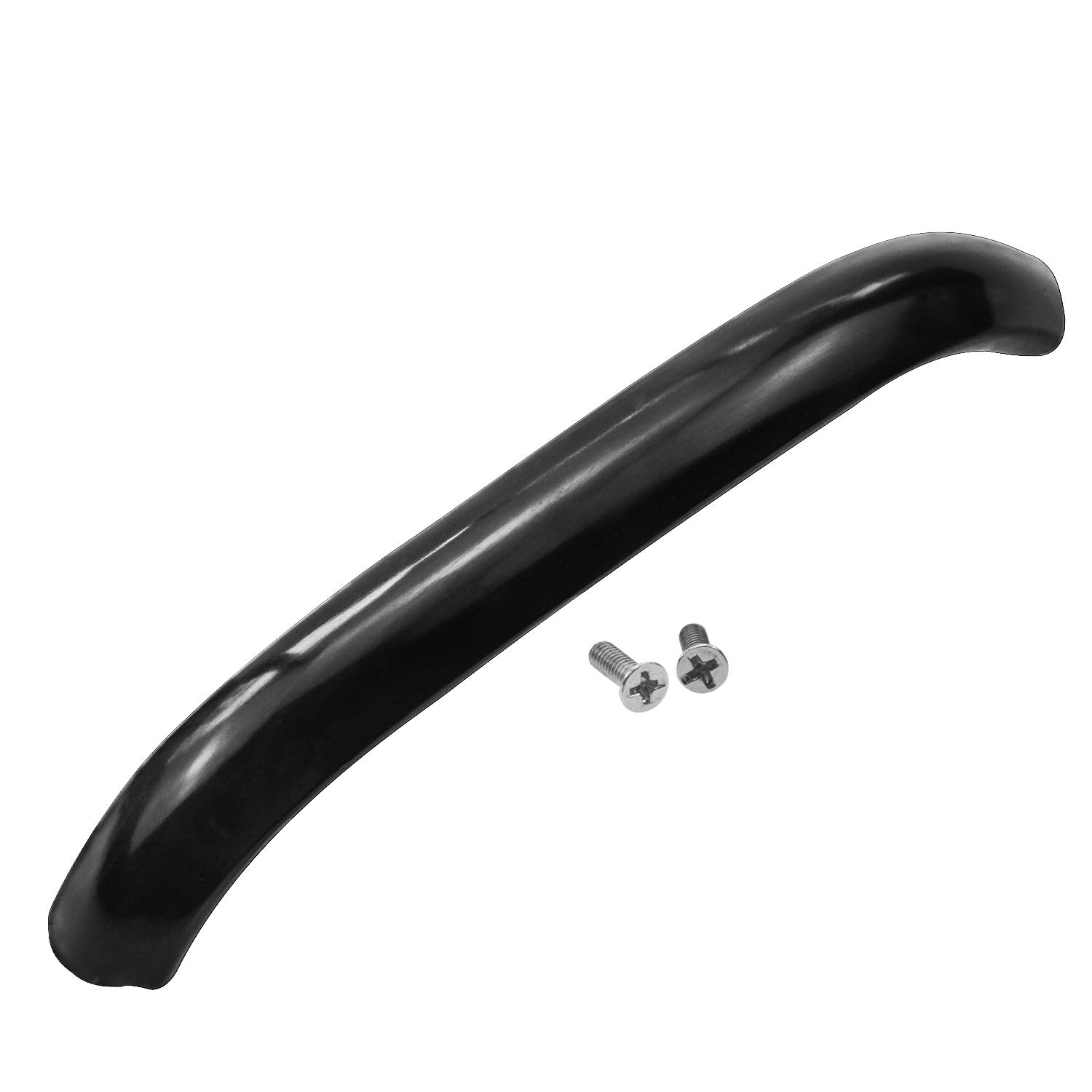

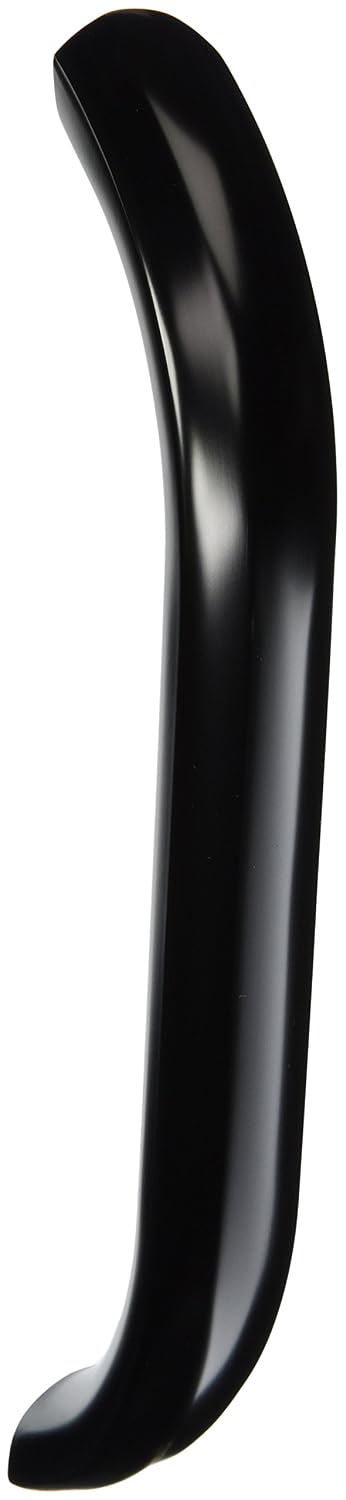

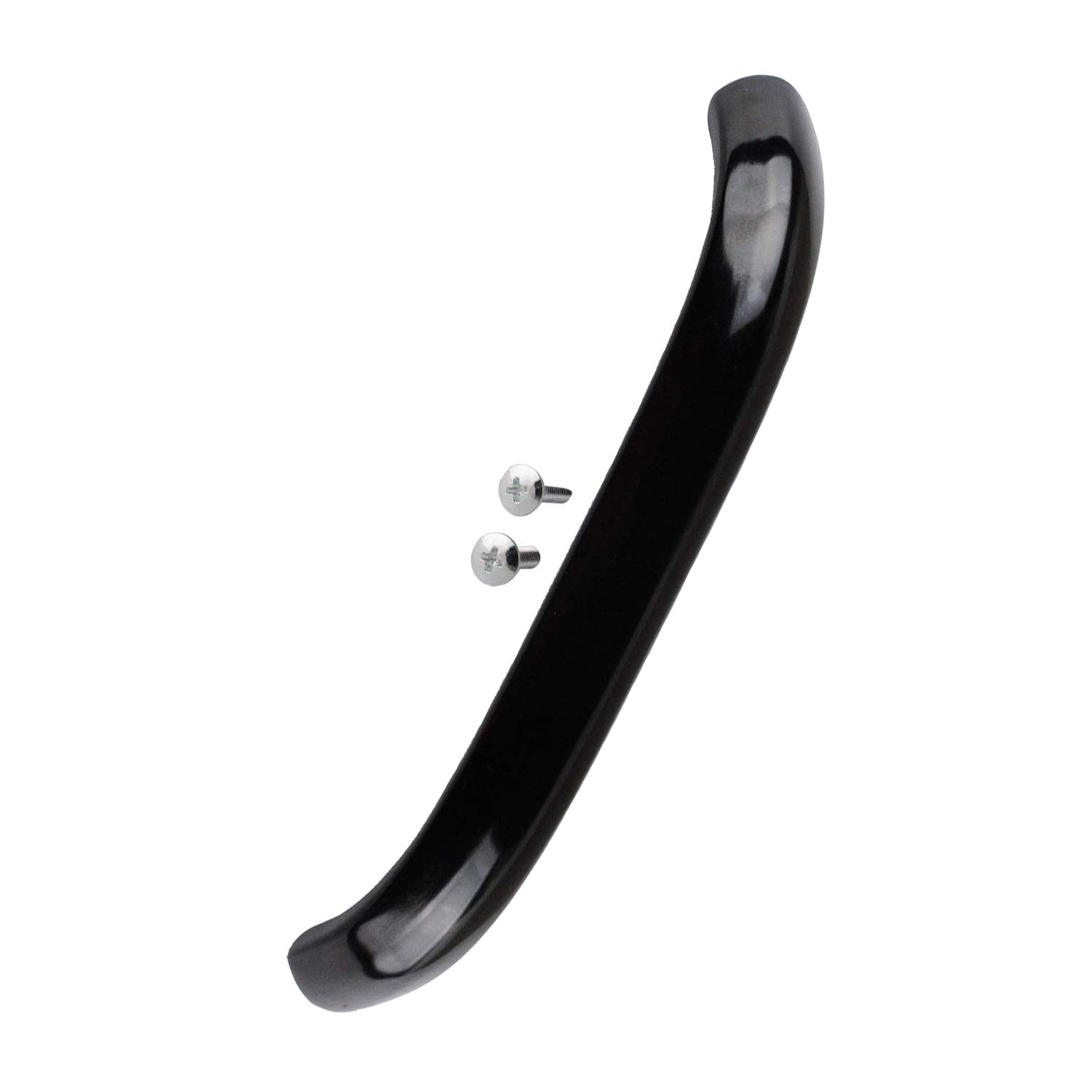

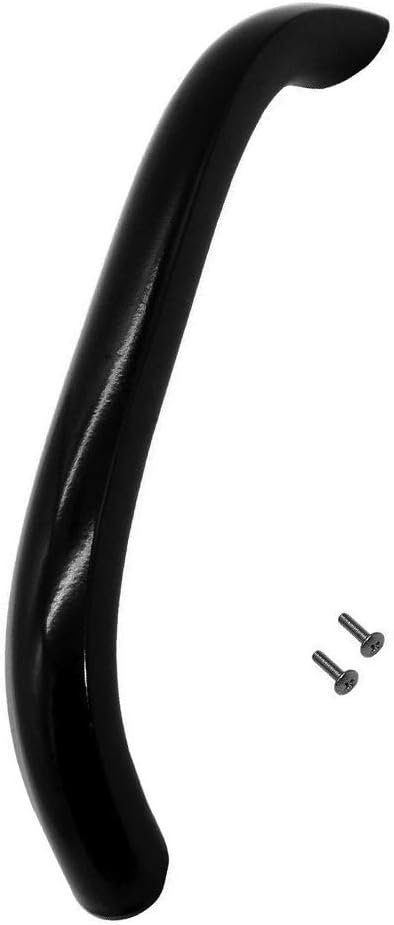

Microwave Door Handle Assembly
Works with the following models:
Frigidaire FFMV162LSA, CFMV162LMA, CFMV162LBA, FFMV162LMA, CFMV162LSA, FFMV162LBA, CFMV152CLBA, FFMV152CLBA.
Replaces part numbers: 5304477398, AP4561001,1614682, 5304464066,5304464133, 5304472481, AH2583001, EA2583001, PS2583001.
Fits the Frigidaire brands:
Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and others. Electrolux also makes various appliance models for Sears / Kenmore
How to Replace a Microwave Door Handle
Step 1: Unplug your microwave oven, or if it’s a built-in model, turn off the circuit breaker or remove the appropriate fuse from your home fuse box.
Step 2: Open your microwave door. Take the top pin off the pivot bracket, and pick the door up, removing it from the bottom bracket. Lay the microwave door front side down on a folded towel. Remove the two choke screws from the door frame with a Phillips head screwdriver.
Step 3: Use a thin knife blade to remove the choke cover, starting at the top right corner of the microwave door. Only pry out the top right and bottom sides at this point. Leave the side that houses the handle in place until later.
Step 4: Use the knife’s edge to remove the choke tabs from the slots on the microwave door frame. Work your way clockwise around the door, and when you get to the side with the handle, remove the choke cover, and separate it from the choke. Remove the two handle screws with a Phillips head screwdriver. Gently pull the handle off the microwave.
Step 5: Screw the new handle on. Lay the choke on the microwave door, and set the choke cover on top of it. Use your knife blade to insert the choke tabs into the slots on the microwave door frame. Secure the two choke screws with a Phillips head screwdriver. Set the microwave door back on the bottom bracket, and slide the top pin into the pivot bracket. Press down on the top pin until you feel it pop securely into place.

Compatible with the Frigidaire brands include Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and others. Electrolux also makes various appliance models for Sears / Kenmore.

This Replaces part numbers: 5304477398, AP4561001, 1614682, 5304464066, 5304464133, 5304472481, AH2583001, EA2583001, PS2583001

Fit for the following common Appliance Models: FFMV162LSA, CFMV162LMA, CFMV162LBA, FFMV162LMA, CFMV162LSA, FFMV162LBA, CFMV152CLBA, FFMV152CLBA.

Material :

This replacement Handle is made from durable high quality stainless steel material and well-tested by the manufacturer

Package included:

1pcs Black Microwave Door Handle, 2pcs screws.

Note :

Please check your model and ensure this fit yours before purchasing the item. If you have any questions for the product, please feel free to contact us for replace or refund. thank you.

Microwave Door Handle Assembly

Note:
Please check your model and ensure this fit yours before purchasing the item.

Replaces part numbers:
5304477398, AP4561001, 1614682, 5304464066, 5304464133, 5304472481, AH2583001, EA2583001, PS2583001.

Fit the following common Appliance Models:
Frigidaire FFMV162LSA, CFMV162LMA, CFMV162LBA, FFMV162LMA, CFMV162LSA, FFMV162LBA, CFMV152CLBA, FFMV152CLBA.

Fits the Frigidaire brands:
Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and others. Electrolux also makes various appliance models for Sears / Kenmore

Package include:
— 1 pc Black Microwave Door Handle and 2 pcs screws.

AMI PARTS 5304477398-B Door Handle Compatible with Frigidaire Microwave (Black).

Compatible with the Frigidaire brands include Electrolux, Gibson, Frigidaire, Kelvinator, Westinghouse, and others.

This Replaces part numbers:5304477398,AP4561001,5304464066,5304464133,1614682,5304472481,AH2583001, EA2583001, PS2583001.

Fit for the following common Appliance Models:FFMV162LSA, CFMV162LMA,CFMV162LBA,FFMV162LMA,CFMV162LSA,FFMV162LBA,CFMV152CLBA, FFMV152CLBA.

Please Note:The brand name or model designation for this product is made solely for purposes of demonstrating compatibility.

Microwave Door Handle Assembly
Works with the following models:
Frigidaire FFMV162LSA, CFMV162LMA, CFMV162LBA, FFMV162LMA, CFMV162LSA, FFMV162LBA, CFMV152CLBA, FFMV152CLBA.
Replaces part numbers:
5304477398, AP4561001, 1614682, 5304464066, 5304464133, 5304472481, AH2583001, EA2583001, PS2583001.
Fits the Frigidaire brands:
Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and others. Electrolux also makes various appliance models for Sears / Kenmore
