702 reviews analysed
1. GE WB27X10930 Microwave Diode
2. Universal Microwave Diode Compatible for GE WB27X10597 Whirlpool W10492276 and Others 2 PCS
Feature
- Production Name: Microwave High Voltage Diode, Withstand Voltage: 12 KV, Rated Current:450 mA,O Terminal Diameter: 4.2mm/0.17in, Female Terminal Size:1/4 in/6.3 mm Standard
- Compatible and directly replace GE WB27X10597 Whirlpool W10492276 high voltage diode for microwave
- Heat shrink tubing on female side and keep safe for ever,widely use for microwave
- Replace high voltage diode which marked T4512, 4512,CL4512, CL04-12
- 1 year warranty
Description
Microwave diode’s valve voltage is more than 3 VDC, so many digital multifunction meter can not test it bad or not, because only 3 VDC battery inside
Advise to use traditional anolog meter to test it because it has 9 VDC battery inside
Detail testing shown in my production photoes
Generic Microwave High Voltage Diode 2 PCS for You
Pack Items: 2 PCS
Common Questions and Answer by Seller
Question 1:Does this diode universal and generic for microwave high voltage diode?
Answer:Yes. Most home microwave high voltage diode’s withstand voltage is 12kv, rated current is 350mA(0.35 amp). Few are 450 mA rated current,normally it is diode CL04-12.
Question 2: What will be happen when microwave diode broken?
Answer: It will not heat food. High voltage fuse after transformer will burnt.
Question 3: How can I check hv diode broken or not?
Answer:First check the low voltage side’s fuse(power input side) burnt or not,then check high voltage fuse after transformer burnt or not, if burnt, the hv diode is broken or burnt. Finally you can check diode good or broken with a electrical meter.
Final Remark:
1. Safe is first, power off and conform high voltage capacitor released high voltage first
2. Check your old and original diode’s terminal size first, some new microwave’s female spade terminal is 3/16in standard, yet this is 1/4 in standard.
3. Ohmmonburged will provide some 3/16 in female spade standard diode for you then.
3. 2pcs MICROWAVE DIODE REPAIR PART FOR GE, LG, AMANA, ELECTROLUX, GE, KENMORE, MAYTAG, WHIRLPOOL, T3512, 3512, T4512, H, CL01-12, HVM12, 512 H, 12Kv 350mA
Description
MICROWAVE DIODE REPAIR PART FOR GE, LG, AMANA, ELECTROLUX, GE, KENMORE, MAYTAG, WHIRLPOOL, T3512, 3512, T4512, H, CL01-12, HVM12, 512 H
4. 2pcs MICROWAVE INSULATED DIODE REPAIR PART FOR GE, LG, AMANA, ELECTROLUX, GE, KENMORE, MAYTAG, WHIRLPOOL
Description
MICROWAVE INSULATED, DIODE REPAIR PART FOR GE, LG, AMANA, ELECTROLUX, GE, KENMORE, MAYTAG, WHIRLPOOL
5. Generic Microwave Diode Compatible for GE WB27X10930 Samsung DE91-70063D LG 6851W1A002E and Others 2 PCS
Feature
- Production Name: Microwave High Voltage Diode, Withstand Voltage: 12 KV, Rated Current:350 mA,O Terminal Diameter: 4.2mm/0.17in, Female Terminal Size:1/4 in/6.3 mm Standard
- Compatible and directly replace GE WB27X10930 Samsung DE91-70063D LG 6851W1A002E high voltage diode for microwave
- Heat shrink tubing on female side and keep safe for ever,widely use for microwave
- Replace high voltage diode which marked T3512, 3512,CL01-12, HVM12, 512H
- Air conditioner and refrigerator’s professional capacitor for fan, long life time, 1 year warranty
Description
Generic Microwave High Voltage Diode 2 PCS for You
Pack Items: 2 PCS
Common Questions and Answer by Seller
Question 1:Does this diode universal and generic for microwave high voltage diode?
Answer:Yes. Most home microwave high voltage diode’s withstand voltage is 12kv, rated current is 350mA(0.35 amp). Few are 450 mA rated current,normally it is diode CL04-12.
Question 2: What will be happen when microwave diode broken?
Answer: It will not heat food. High voltage fuse after transformer will burnt.
Question 3: How can I check hv diode broken or not?
Answer:First check the low voltage side’s fuse(power input side) burnt or not,then check high voltage fuse after transformer burnt or not, if burnt, the hv diode is broken or burnt. Finally you can check diode good or broken with a electrical meter.
Final Remark:
1. Safe is first, power off and conform high voltage capacitor released high voltage first
2. Check your old and original diode’s terminal size first, some new microwave’s female spade terminal is 3/16in standard, yet this is 1/4 in standard.
3. Ohmmonburged will provide some 3/16 in female spade standard diode for you then.

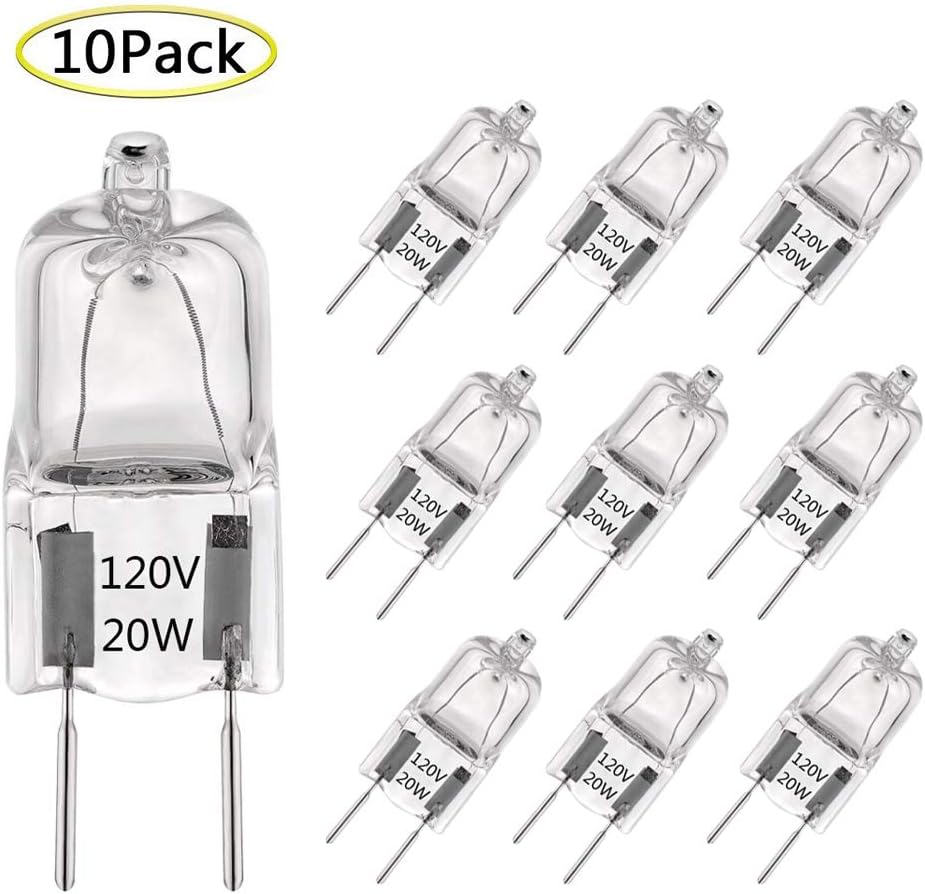

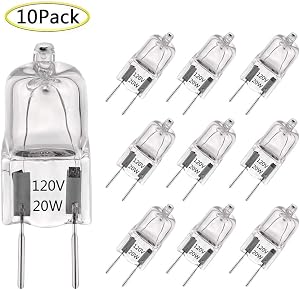

6. G8 Light Bulbs Dimmable 20 Watt 120V T4 JCD G8 Bi-Pin Base Warm White 2700K G8 Halogen Bulb 20W for Under Cabinet Puck Light, Kitchen Hood, GE Microwave Light, Landscape Light Replacements (10 Pack)
Feature
- Easy to install, Single bulb 37 mm Length / 1.46″ Length ,Direct replacements for all G8 fittings and sockets, Often used for Under Cabinet Puck Lights, Counter, Kitchen Range Hood, Microwave Oven Light, Landscape Lights, Desk and Floor Lamps, Wall Sconces, etc.
- Lacnooe G8 light bulb 20w with Premium quality tungsten filaments, Utilizes the “Halogen Cycle” and outlasting typical incandescent light bulbs in lifetime and brightness for maximum and prolonged lifetime. No lead or mercury, no UV or IR radiation, Certified with CE and RoHS.
- Instant on to full brightness and no warm up time, fully dimmable, no flicker, no buzzing sound, CRI 100, It has better colour rendering than LED bulb, Protect your eyes, Dimmable G8 Halogen Bulbs can change the visual appearance and mood of your space, work safely at AC110-120 volt.
- G8 halogen bulb 20 watt, 200 Lumens, 360° Beam Angle, High brightness and energy efficient light bulb, Average Household Energy Costs is $2.4 per Year. 2700K Warm White, It has better Color Temperature than LED bulb, It creates a warm and cozy feel in your home.
- 100% Satisfaction Guarantee, Every item you buy from Lacnooe has 60 days money back guarantee and 12 months free warranty.Pls feel free to contact us If you have any issues with the product, we will be pleased to assist you.
7. Meter Star CQC Universal Household Microwave HV Capacitor Replacement 2100V 0.91uF MFD Compatible ch85 21091 AC H.V.Capacitor 10/85/21 50/60Hz NO PCB
Feature
- ※ 1、Production Name: High Voltage Capacitor for Microwave, Wistand Voltage: 2100 V AC, Capacitor Volume: 0.91 uF MFD, Tolerance:+/- 3%, OverView Size: 53x33x80 mm/2.1×1.3×3.1 in, Connect Pin: 6.35×0.8mm/0.25×0.03in
- ※ 2、Kindly Remind: This 0.91 uF capacitor’s connect terminal size is 6.35×0.8mm/0.25×0.03in(1/4 in standard terminal), please check your original pin size before you replacement
- ※ 3、Completely compatible for GE WB27X10011 and Samsung 2501-001011 DE96-00269A and other same size capacitor for Amana Electrolux Ge Kenmore Whirlpool, directly replace,Part Number TJ13QBP21090 replaces 13QBP0299, 13QBP21090, 505766 and more.
- ※ 4、Terminals 2+2,each pole has 2 terminals, Embody one 10M ohm resistance inside high voltage capacitor inside and it will release high voltage during idle or shut down time, ensure safe,REPAIR PART FOR AMANA, ELECTROLUX, GE, KENMORE, MAYTAG
- ※ 5、CQC and VDE certificated, executed EN61270-1 standard, ensure safe enough,1 year warranty ,Universal and professional and compatible microwave high voltage capacitor for GE Samsung LG Media Hair Amana Kenmore Mayta microwave, completely replace for GE WB27X10701 high voltage capacitor
Description
Special Notice: Common microwave capacitor’s terminal pin size is 4.8×0.5mm/0.19×0.02in, Yet its size is 6.3×0.8mm/0.25×0.03in, Conform before you purchase
Package Content: 1 x High Voltage Microwave Capacitor
OverView Size:53x33x80 mm/2.1×1.3×3.31in
Connect Pin: 6.35×0.8mm/0.25×0.03in(1/4 in standard terminal)
Item Net Weight: 136 g/ 4.8 Oz
Kindly Remind Following Items:
1.Please shut down your microwave’s power supply bofore you replace or repair.
2.Please use electrical meter to conform high voltage capacitor’s high voltage is already release completely, pay attention to electrical shock, keep safe first!
3.Microwave first produce on northen America, then switch to Japanese and Korean, Finally switch to China and Southen East Asia, its high voltage capacitor’s body size and parameters are generaly compatible.
4.To test one precise capacitor, it needs to use professional capacitor tester to get result, multi-function(combine voltage, current, capacitor…several test function) will lead some error result due to its only one range and accuracy grade.
8. Toshiba EM925A5A-SS Microwave Oven with Sound On/Off ECO Mode and LED Lighting, 0.9 cu. ft, Stainless Steel
Feature
- Compact size 19.2 x 15.9 x 11.5 inches(W*D*H), 0.9 cubic feet capacity, cavity 12.36*13.66*8.7 inch(W*D*H), turn table 10.6 inch(Diameter)
- 900 watts with 10 power settings, kitchen timer, and defrost by time or Weight. Rated Voltage 120V~ 60Hz
- Digital control panel with interior LED light, glass turntable, black Stainless Steel exterior
- One touch start for six pre-programmed functions: popcorn, potato, pizza, frozen vegetable, Beverage, dinner plate
- Power saving mode, sound on/off option and child safety lock Compare with similar items
Description
This Toshiba 0.9 Cubic feet 900 watt black Stainless Steel microwave is the ideal size for smaller kitchens, dorms, or office break rooms. It offers ten power levels up to 900 watts, and features a digital display and LED interior lighting. One-touch buttons make food preparation quick and easy. There are six pre-programmed settings: popcorn, potatoes, frozen vegetables, beverages, dinner plate and pizza. Multi-stage cooking is easily programmed with the control panel. The tone at the end of the cooking cycle can be turned off for quiet operation. Easily open or close the microwave with the large, easy-to grip door handle. The black Stainless Steel exterior looks good in any kitchen.

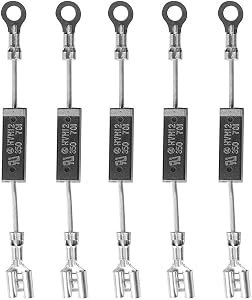

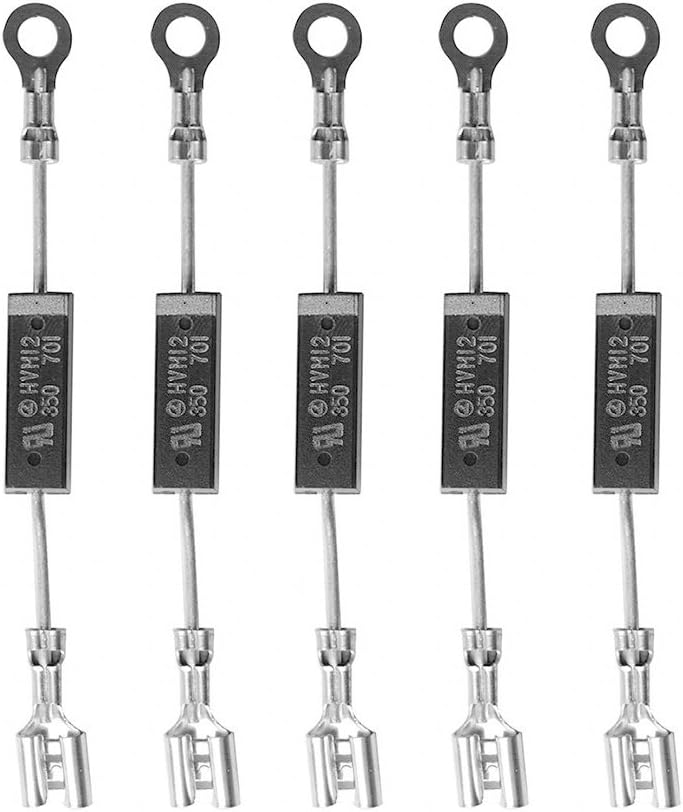

9. Poweka CL01-12 Microwave Diode Rectifier Replace for WHIRLPOOL GE LG AMANA KENMORE HVM12 HVR-1X3 T3512 T4512 512H 12KV 350MA(5 Packs)
Feature
- CL01-12 Rectifier Diode Replace for GE LG AMANA ELECTROLUX GE KENMORE WHIRLPOOL HVM12 HVR-1X3 T3512 T4512 512H
- Features: transfer molded plastic. Plated axial lead, solderable. Single phase, halfwave, resistive or inductive load
- Max peak reverse voltage: 12KV
- Current: 350MA
- Length: 8.6cm / 3.3″
- Color: Silver and black
- Good quality, easy to operation. Quality is 100% guaranteed
Description
CL01-12 rectifier diode 12KV for rectification for microwave oven high voltage power supply
Low coat construction, low forward voltage drop, and low reverse leakage, with high forward surge current capability, high temperature soldering guaranteed.
Replace for the following models
HVM12 HVR-1X3 T3512 T4512 512H etc.
Specification
Type: High Voltage Microwave Diode
Model: CL01-12
Voltage: 12kV
Current: 350mA
Peak current: 50A
Lead Diameter: 1.4mm/0.06″; Body Dimension: 21 x 7 x 7mm/0.83″ x 0.28″ X 0.28″
Weight : 15g
Polarity: color band denotes cathode end.
Quantity: 5pcs rectifier diode
Features
transfer molded plastic. Plated axial lead, solderable. Single phase, halfwave, resistive or inductive load.
Conclusion
By our suggestions above, we hope that you can found Microwave Diode Ge for you.Please don’t forget to share your experience by comment in this post. Thank you!
